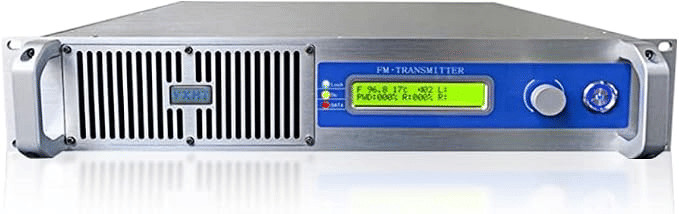

YCZHI 1000W Professional FM Broadcast Transmitter
2180,00 US$
Deliver high-fidelity audio across vast coverage areas with this professional-grade 1000W FM broadcast transmitter. Featuring advanced all-digital DSP and PLL technology, it ensures crystal-clear sound transmission with minimal harmonic distortion and noise. The integrated RF power output is continuously adjustable from 0 to 1000W in fine increments, providing the versatility needed for churches, campus radio, and commercial broadcasting stations.
A clear LCD screen delivers real-time monitoring of essential operating parameters, including operating frequency, RF power, SWR, and internal temperature. Built-in multi-level protection shields the unit against overheating, high SWR, overvoltage, short circuits, and fan failure, ensuring reliable and continuous broadcast performance.
Cantidad
Solo 5 disponible(s)
Key Features
| Brand | YCZHI |
| Model Number | 1000w fm transmitter |
| Product Type | FM Broadcast Transmitter |
| Output Power | 0~1000W |
| Frequency Setting Step | 10KHz |
| Carrier Frequency Precision | ±200Hz |
| Signal-to-Noise Ratio (S/N) | ≥75dB (30Hz~15kHz, 100%) |
| Audio Harmonic Distortion | <0.05% |
| Audio Response | ±0.05dB (30Hz~15KHz) |
| Stereo Separation | 60dB |
| Audio Input Impedance | 600Ω, Balanced |
| Output Load Impedance | 50Ω |
| Residual Wave Radiation | ≥65dBc |
| Sub-Carrier Suppression | ≥65dB |
| Pre-Emphasis | 0μS, 50μS, 75μS |
| Display Type | LCD |
| Dimensions | 19.5 x 18 x 3.5 in |
| Weight | 30 lb |
| Power Source | Corded Electric |
Highlights

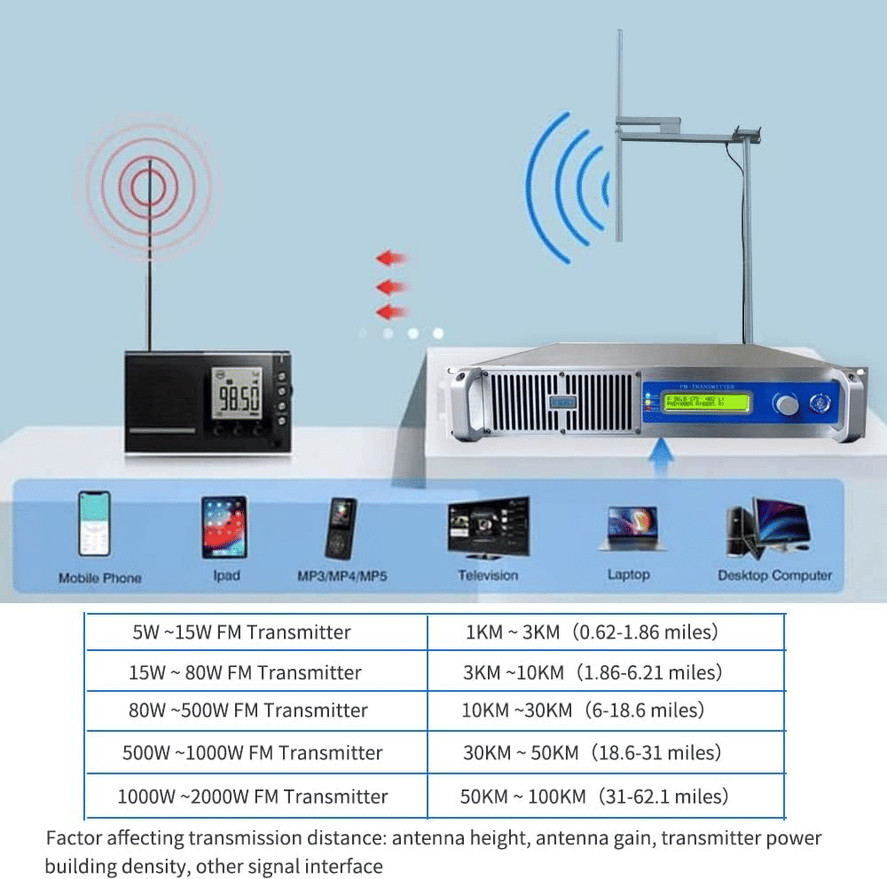

- 【Long range transmission】1000watt FM Transmitter radius of coverage about 25-30km (15.53-18.64 miles).The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
- 【Multiple security protection】Overheat protection, Over SWR protection, Fan error alarm, Lightning protection, over-voltage protection, short circuit protection the fan stops running, the alarm message will be displayed on the long range fm transmitter screen.
- 【LCD Screen Display】FM broadcast transmitter meet different broadcast channel requirement,can arbitrarily set with big LCD screen display shown the specific parameters. it is convenient to know transmitter working statues transmitter implements digital FM modulator module as its core,combining with RF power amplifier.
- 【Widely Use】FM broadcasting transmitter well compatible with most of the smartphones and more devices. Can be used for church station, park station, school station ,factory station or create your own station
- 【6 Years Warranty】6-year manufacturer's warranty. FM Stereo Transmitters with high performance and very good reliability has been proved by the large usage.
Compatibility
Compatible with standard professional and consumer audio input sources, including smartphones, laptops, tablets, MP3 players, and audio mixing consoles via standard audio lines.
Warranty

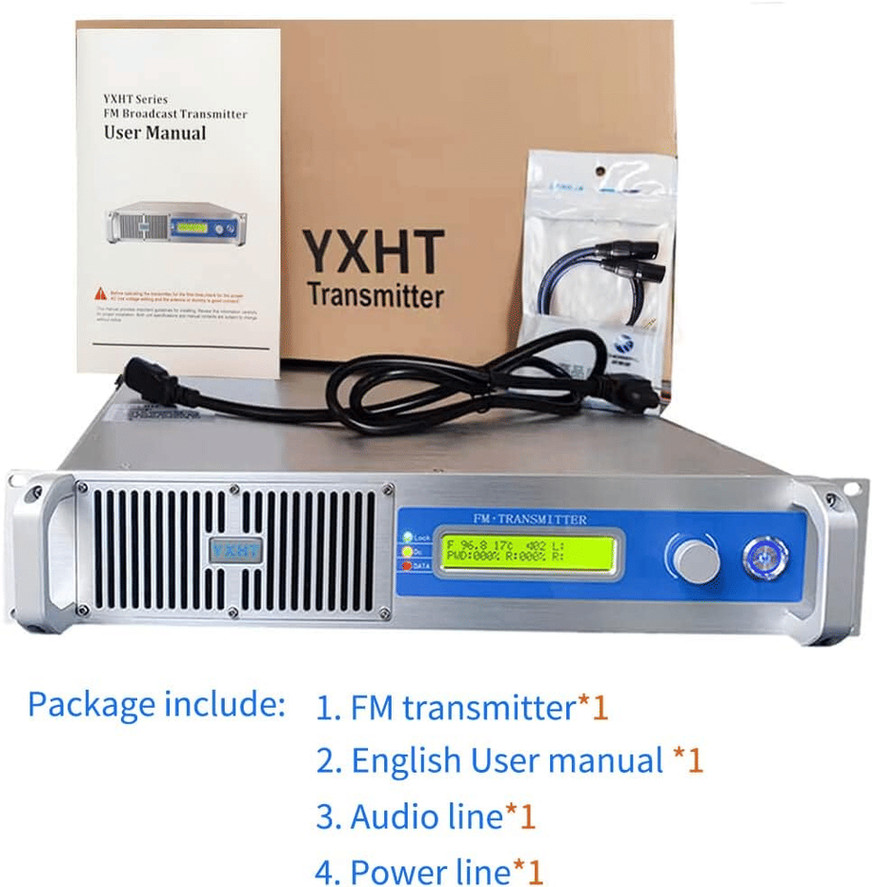

What's included
Frequently asked questions
What is the estimated broadcast range of this transmitter?
Under optimal conditions, the 1000W transmitter provides an estimated coverage radius of approximately 15.5 to 18.6 miles (25 to 30 km).
Can the power output be adjusted?
Yes, the RF output power is continuously adjustable from 0 to 1000 watts in 0.1-watt increments.
What parameters are displayed on the LCD screen?
The LCD screen provides real-time monitoring of working frequency, volume, FETMOS temperature, forward power, and SWR levels.
What built-in safety protections does the unit have?
The transmitter features automated protection and alarm alerts for overheating, excess SWR, fan failure, lightning, over-voltage, and short circuits.
