JFCVSURSG 1000W FM Radio Broadcast Transmitter
2080,00 US$
This professional commercial FM broadcast transmitter delivers reliable, high-power radio transmission with continuously adjustable RF output up to 1000W. Featuring advanced LD-MOSFET technology and an integrated Power Factor Corrector power supply, the unit achieves over 70% operating efficiency while delivering clean, crystal-clear stereo audio performance with minimal distortion.
Engineered for continuous commercial operation, the system includes automatic power control along with comprehensive safeguards against overheating, over-voltage, over-current, and standing wave ratio anomalies. An intuitive digital LCD interface and rotary control simplify parameter programming, making it an ideal broadcast solution for radio stations, campuses, and community facilities.
Cantidad
Solo 5 disponible(s)
Key Features
| Brand | JFCVSURSG |
| Product Type | FM Radio Broadcast Transmitter |
| RF Output Power | 0 to 1000W (Adjustable) |
| Enclosure Material | Aluminum |
| Power Source | Corded Electric |
| Radio Bands Supported | FM |
| Frequency Step | 10 kHz |
| Carrier Frequency Precision | ±200 Hz |
| Audio Input Impedance | 600 Ω (Balanced) |
| Output Load Impedance | 50 Ω |
| Signal-to-Noise Ratio | ≥75 dB (30 Hz to 15 kHz, 100%) |
| Audio Harmonic Distortion | <0.05% |
| Stereo Separation | 60 dB |
| Residual Wave Radiation | ≥65 dBc |
| Sub-carrier Suppression | ≥65 dB |
| Audio Response | ±0.05 dB (30 Hz to 15 kHz) |
| Frequency Deviation | ±75 kHz |
| Item Dimensions (L x W x H) | 18.1 in x 18.9 in x 3.5 in |
| Product Weight | 33.1 lb |
Highlights
- 【Precise Adjustable Power Output】The RF output of this FM radio transmitter is continuously adjustable from 0- 1000watts in 0.1-watt increments, allowing for precise power settings based on specific needs—whether for short-range communication or extended coverage. This flexibility ensures optimal performance in any scenario.

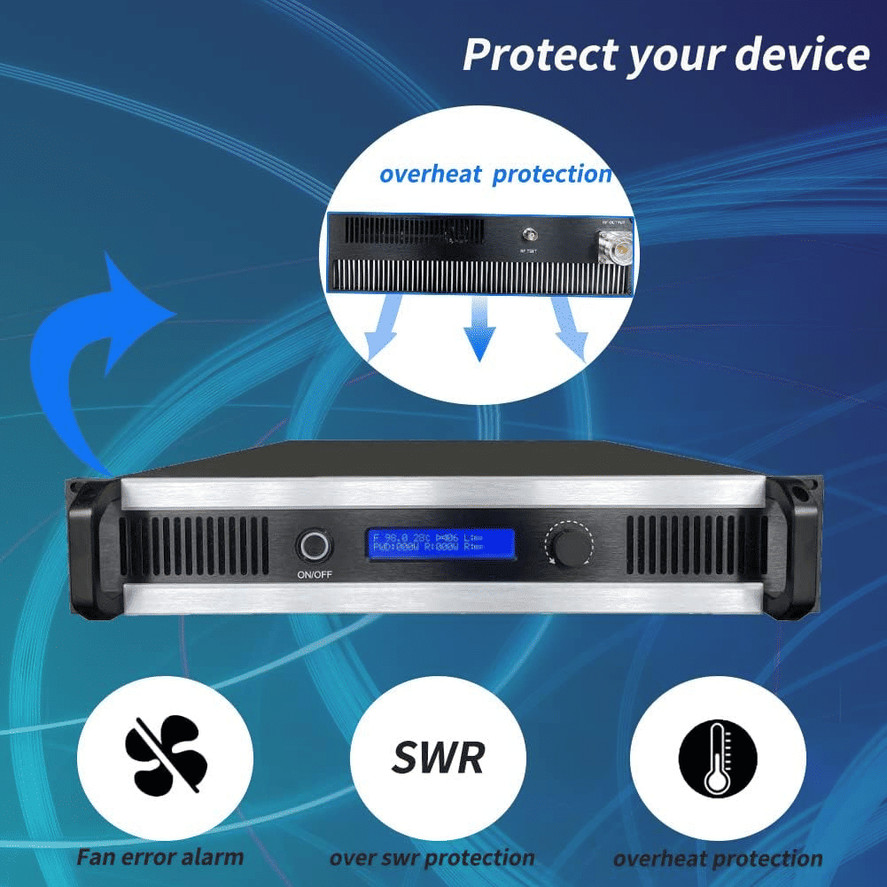

- 【Intelligent Overheat Protection】The long range transmitter automatically switches to protection mode, accompanied by a clear alarm message and a beep sound. This real-time safeguard prevents overheating damage, ensuring long-term reliability.
- 【Comprehensive Multi-Protection System】Beyond overheat protection, the FM radio station transmitter features full safeguards against over-current, over-voltage, over-power, and abnormal standing wave ratio. Each protection mechanism triggers instantly to shield internal components, minimizing maintenance risks and extending the device’s lifespan.
- 【Crystal-Clear Stereo Sound】Boasts excellent audio fidelity with soft, deep, and clean crystal sound. Thanks to a digital stereo coder and full-process digital processing, it achieves CD-like sound quality with ultra-low signal-to-noise ratio, minimal distortion, and high stereo separation—delivering an immersive auditory experience.
- 【User-Friendly Digital Interface】This FM broadcasting transmitter is equipped with a clear LCD panel and a single rotary knob for operation, which simplifies setup and adjustments.
Compatibility
Compatible with standard 50-ohm FM broadcast antenna systems and standard balanced line-level analog audio sources, MPX composite generators, and SCA/RDS encoders.
How to use
Connect the transmitter to a suitable 50-ohm RF antenna and grounding system before powering on. Connect your audio source to the analog or composite inputs, plug in the power cable, and use the rotary knob and LCD display to select your broadcast frequency and desired power level.
Warranty
What's included
- FM Transmitter 1000W×1
- Power line×1
- Audio line×1
Frequently asked questions
How is the RF output power adjusted?
The RF power output can be adjusted continuously across its range in precise increments using the front-panel rotary control and LCD menu.
What built-in protection features does the transmitter offer?
The transmitter includes automated safeguards against overheating, abnormal standing wave ratio (SWR), over-voltage, over-current, and over-power conditions.
What audio inputs are supported?
The unit features balanced left and right analog audio inputs, mono inputs, MPX composite signal inputs, and auxiliary inputs for SCA/RDS signals.
What is included in the package?
The package includes the FM broadcast transmitter unit, a power line, and an audio line.
